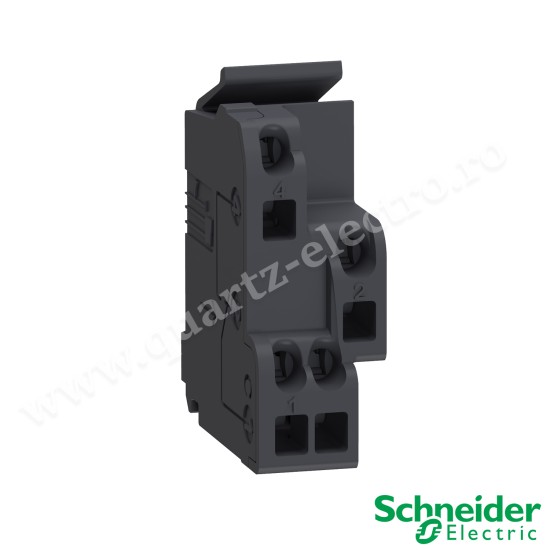

CONTACT AUXILIAR - 1 OC/1 SD/1 SDE/ 1 SDV

tip produs sau componenta

Contact auxiliar

nume scurt al dispozitivului

OF
SD
SDE
SDV

domeniu de utilizare al dispozitivului

Breaker status monitoring

compatibilitate gama

Compact (ComPact NS630b...1600)
Compact (ComPact NS1600b...3200)
Compact (Compact INS)
Compact (Compact INV)
Compact (ComPact NSX)
Easypact (EasyPact CVS)
PowerPact (PowerPact Multistandard)
Compact (ComPact NSX DC)

compozitie contacte de semnalizare

1 NO/NC

tip eroare

Defect electric general

semnalizare locala

Pentruopen/close indicatie ON/OFF
Pentruindicator declansare releu indicator declanşare
Pentruelectrical fault declansare defectiune

tip contacte auxiliare

Standard

mod de montare

Clipsabil

[Ith] curent termic conventional in aer liber

5 A

Breaking capacity (A)

AC-12: 6 A at 24 V c.a. 50/60 Hz
AC-12: 6 A at 48 V c.a. 50/60 Hz
AC-12: 6 A at 110 V c.a. 50/60 Hz
AC-12: 6 A at 220/240 V c.a. 50/60 Hz
AC-12: 6 A at 380/440 V c.a. 50/60 Hz
AC-12: 6 A at 480 V c.a. 50/60 Hz
AC-12: 6 A at 660/690 V c.a. 50/60 Hz
AC-15: 6 A at 24 V c.a. 50/60 Hz
AC-15: 6 A at 48 V c.a. 50/60 Hz
AC-15: 5 A at 110 V c.a. 50/60 Hz
AC-15: 4 A at 220/240 V c.a. 50/60 Hz
AC-15: 2 A at 380/440 V c.a. 50/60 Hz
AC-15: 1,5 A at 480 V c.a. 50/60 Hz
AC-15: 0,1 A at 660/690 V c.a. 50/60 Hz
DC-12: 6 A at 24 V c.c. 50/60 Hz
DC-12: 2,5 A at 48 V c.c. 50/60 Hz
DC-12: 0,6 A at 110 V c.c. 50/60 Hz
DC-12: 0,3 A at 250 V c.c. 50/60 Hz
DC-14: 1 A at 24 V c.c. 50/60 Hz
DC-14: 0,2 A at 48 V c.c.
DC-14: 0,05 A at 110 V c.c.
DC-14: 0,03 A at 250 V c.c.

sarcina minima

100 mA la 24 V c.c.

terminal auxiliar de conectare

Arc 0,5…1,5 mm² (AWG 20...AWG 16)

categoria accesorii/piese separate

Piese de schimb pentru Compact NS630b...1600
Piese de schimb pentru Compact NS1600b...3200
